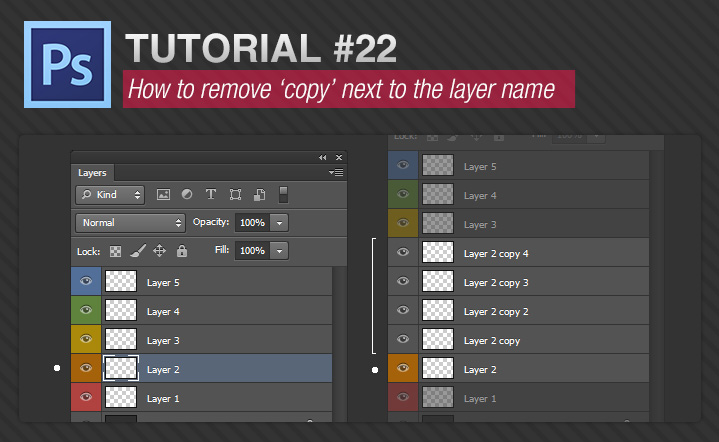

The 'copy' next to the layer name is helpful when identifying the duplicated layer. But you can also turn off this option, so when you duplicate
it will display the same exact layer name multiple times.
If you want to remove the copy next to the layer name, you can directly to >> Step no. 18.
01. I'll explain how the duplicate layer works and what are the different ways to duplicate the layers or groups. I'll be using these 5 layers. The layers are colored to differentiate from one another
02. Select the layer and press 'Ctrl J' to duplicate. The duplicated layer will be on top of the currently selected layer. The duplicated layer will have a sequence no. running from bottom to top with 'copy' next to the layer name with sequence no.
This will help us to see which layer is original and which is duplicated. Notice, my original layer is colored but all the duplicates are not
03. I'll select 'Layer 2' and press 'Ctrl J' to duplicate again. Always the duplicate starts right above the current selected layer and also notice the continuation of the Sequence no. after the copy.
04. Let's see what happen if we delete the duplicates and create again.
Here i have duplicated 'Layer 2' for 9 times. I'll select the top 4 layers (5 to 8) and delete them.
If i duplicate 'Layer 2 copy 4', it will continue the missing sequence no. Once the duplicates are deleted, creating more duplicates will fill all the missing sequence numbers
05. What happen if we delete the first set of sequence numbers.
Here i have duplicated from 'Layer 2' and it will fill the missing numbers between Layer 2 copy and Layer 2 copy 5. If you keep on duplicating, after Layer 2 copy 5 it will be Layer 2 copy 9
It depends on which layer you select. See the next image.
06. Here's a better understanding of how the duplicate works. The duplicates are in color and the selected layers are highlighted in grey.
07. You can also select multiple layers and duplicate.
08. What happen if you delete the number?
when you remove a number, the sequence breaks, and if you duplicate, it will start a new sequence by adding one more copy. Well that is actually depending on the layer name. See the next image.
09. By default the duplicate sequence works by adding a space after the layer name.
By mistake if you keep the space (visually you cannot see) at the end of the layer name, the duplicate thinks its a new layer and it will make a new sequence
10. You can also duplicate a group. Duplicating the group will not rename the layers inside.
11. The same goes for duplicating the Group with layer and group inside. It duplicates only the selected group/layer and nothing will change inside.
12. Duplicating the group which is inside the parent group will only duplicate the selected group and nothing will affects.
13. There are four different ways you can duplicate the layer. Apart from Ctrl J, the other three options will bring the Duplicate Window.
14. You can also duplicate locked layer or group. If a locked layer is duplicated it will not have a lock symbol. But if you have a locked layer inside group and if the group is not locked, then duplicating the group will have a lock symbol for the layer.
But if you lock the group and not the layers inside, duplicating the group will lock only the group and not the layer.
15. You can also duplicate multiple locked layers
16. What happen if you duplicate multiple layers with only one locked. It will duplicate as it is
17. You can also duplicate hidden layers.
18. To remove the copy next to the layer name, go to Layers palette menu > Panel Options and uncheck Add "copy" to Copied Layers and Groups
19. This will not display the copy next to the layer name, it might confuse you to differentiate the original and the duplicate.
If you want to remove the copy next to the layer name, you can directly to >> Step no. 18.
01. I'll explain how the duplicate layer works and what are the different ways to duplicate the layers or groups. I'll be using these 5 layers. The layers are colored to differentiate from one another
(fig 1.0)
02. Select the layer and press 'Ctrl J' to duplicate. The duplicated layer will be on top of the currently selected layer. The duplicated layer will have a sequence no. running from bottom to top with 'copy' next to the layer name with sequence no.
This will help us to see which layer is original and which is duplicated. Notice, my original layer is colored but all the duplicates are not
03. I'll select 'Layer 2' and press 'Ctrl J' to duplicate again. Always the duplicate starts right above the current selected layer and also notice the continuation of the Sequence no. after the copy.
(fig 2.1)
04. Let's see what happen if we delete the duplicates and create again.
Here i have duplicated 'Layer 2' for 9 times. I'll select the top 4 layers (5 to 8) and delete them.
If i duplicate 'Layer 2 copy 4', it will continue the missing sequence no. Once the duplicates are deleted, creating more duplicates will fill all the missing sequence numbers
(fig 3.0)
05. What happen if we delete the first set of sequence numbers.
Here i have duplicated from 'Layer 2' and it will fill the missing numbers between Layer 2 copy and Layer 2 copy 5. If you keep on duplicating, after Layer 2 copy 5 it will be Layer 2 copy 9
It depends on which layer you select. See the next image.
(fig 4.0)
06. Here's a better understanding of how the duplicate works. The duplicates are in color and the selected layers are highlighted in grey.
(fig 5.0)
07. You can also select multiple layers and duplicate.
(fig 6.0)
08. What happen if you delete the number?
when you remove a number, the sequence breaks, and if you duplicate, it will start a new sequence by adding one more copy. Well that is actually depending on the layer name. See the next image.
(fig 7.0)
09. By default the duplicate sequence works by adding a space after the layer name.
By mistake if you keep the space (visually you cannot see) at the end of the layer name, the duplicate thinks its a new layer and it will make a new sequence
(fig 8.0)
10. You can also duplicate a group. Duplicating the group will not rename the layers inside.
(fig 9.0)
11. The same goes for duplicating the Group with layer and group inside. It duplicates only the selected group/layer and nothing will change inside.
(fig 10.0)
12. Duplicating the group which is inside the parent group will only duplicate the selected group and nothing will affects.
(fig 11.0)
13. There are four different ways you can duplicate the layer. Apart from Ctrl J, the other three options will bring the Duplicate Window.
(fig 12.0)
14. You can also duplicate locked layer or group. If a locked layer is duplicated it will not have a lock symbol. But if you have a locked layer inside group and if the group is not locked, then duplicating the group will have a lock symbol for the layer.
But if you lock the group and not the layers inside, duplicating the group will lock only the group and not the layer.
(fig 13.0)
15. You can also duplicate multiple locked layers
(fig 14.0)
16. What happen if you duplicate multiple layers with only one locked. It will duplicate as it is
(fig 15.0)
17. You can also duplicate hidden layers.
(fig 16.0)
18. To remove the copy next to the layer name, go to Layers palette menu > Panel Options and uncheck Add "copy" to Copied Layers and Groups
(fig 17.0)
19. This will not display the copy next to the layer name, it might confuse you to differentiate the original and the duplicate.
(fig 18.0)
